VSDISPLAY 14.1 Inch AA141TC01 1280x800 LCD Screen and H/D Audio Controller Board, 20-Pin LVDS TN Monitor Kit

LCD Controller Board:H/D LCD Board Work for LVDS Interface LCD Screen.Input Power Adapter: 12Vdc More than 5A.Come In Standby Mode When Not Input Signal.Standby Mode <1W.Video Input: H/D.Audio Input: H/D.Audio Output: Speaker (4Pin PH1.0 connector).OSD: Brightness, Contrast, Auto, Language And So On.Language: English, French, German, Spanish, Italian And So On.Board Size: 74mm x 53mm x 12mm.14.1" AA141TC01 1280x800 LCD Screen:Display Mode TN, Normally White, Transmissive.Resolution 1280(RGB) x 800.Outline Size 326 x 216.5 x 16.5mm (H x V x D).Display Area 303.36 x 189.6mm (H x V).Brightness 500 cd/m2 (Typ.).Contrast Ratio 700:1 (Typ.).Viewing Angle 80/80/80/60 (Typ.).Signal Interface 20 pins LVDS (1 ch, 6/8-bit).Backlight WLED.Input Voltage 3.3V (Typ.).Packing List:1 x H/D Audio LCD Controller Board VS-TY2660H-V661.1 x 14.1-inch AA141TC01 1280x800 LCD Screen.1 x LVDS Cable.1 x Backlight Board.1 x Keyboard With Cable.

• 14.1-inch AA141TC01 LCD screen with 1280 x 800 resolution, TN display mode, 500 cd/m2 typical brightness, 700:1 contrast ratio, and 20-pin LVDS interface for custom monitor projects.
• Controller board supports H/D video input and H/D audio input, plus speaker output through a 4Pin PH1.0 connector, making it suitable for compact single-source display systems.
• Screen outline size is 326 x 216.5 x 16.5mm, display area is 303.36 x 189.6mm, and the panel uses WLED backlight with 3.3V input.
• Board size is 74 x 53 x 12mm and input power requirement is 12V DC 5A or above. The kit is suitable for DIY monitors, industrial displays, and embedded H/D display projects.

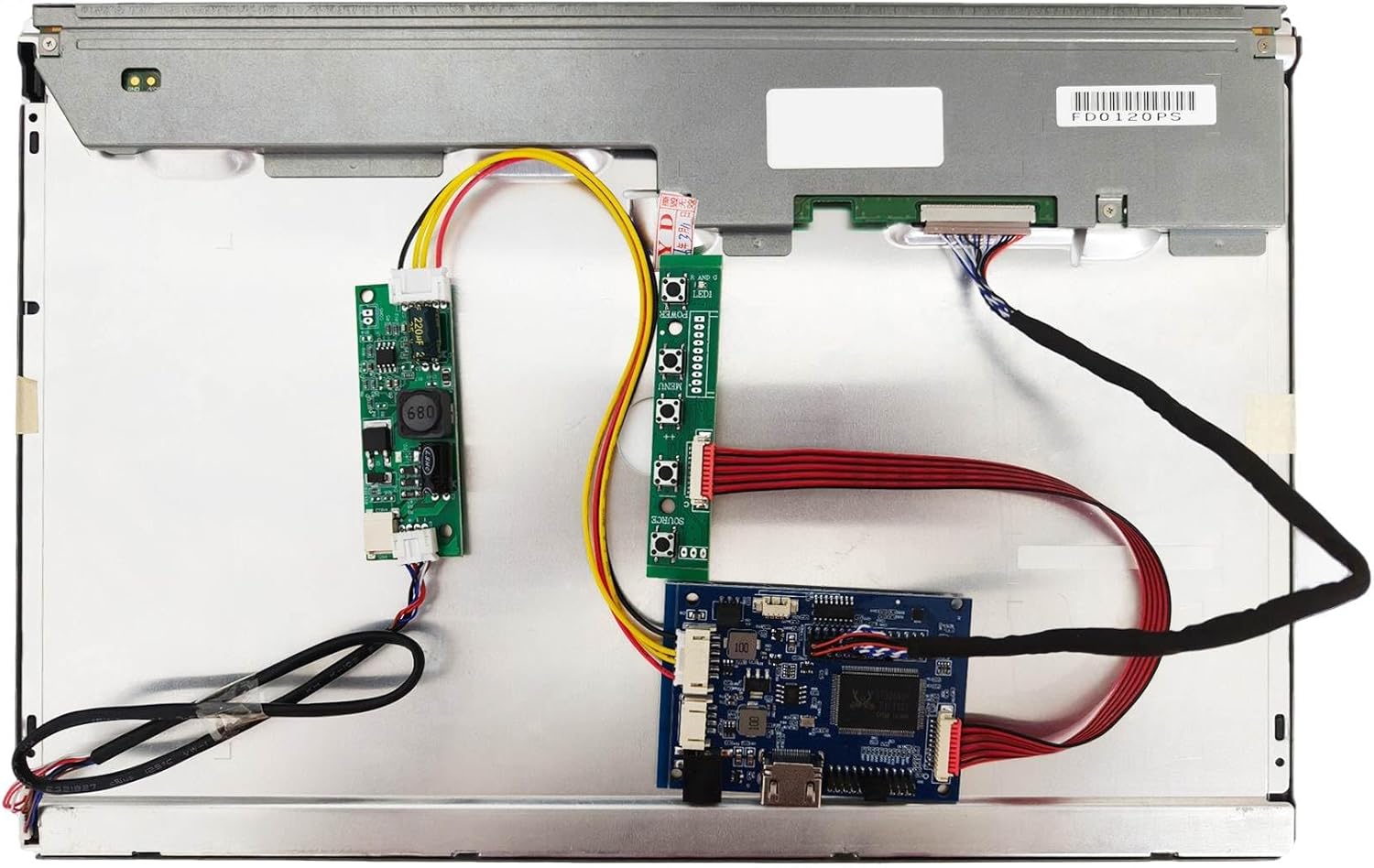

• Packing list: 1 x H/D Audio LCD Controller Board VS-TY2660H-V661; 1 x 14.1-inch AA141TC01 1280x800 LCD Screen; 1 x LVDS Cable; 1 x Backlight Board; 1 x Keyboard With Cable
